Jin Jun Global Services was founded in 2026. Its core business covers the import, export and sales of mining machinery, heavy‑duty equipment, spare parts and tires. It provides equipment rental services, offering dry‑lease solutions for mines without operating personnel. The company delivers comprehensive mining services, supplying basic chemical raw materials, industrial oil products and fluid media. It also provides technical exploration support and on‑site assistance for all phases of mining operations.
![]()

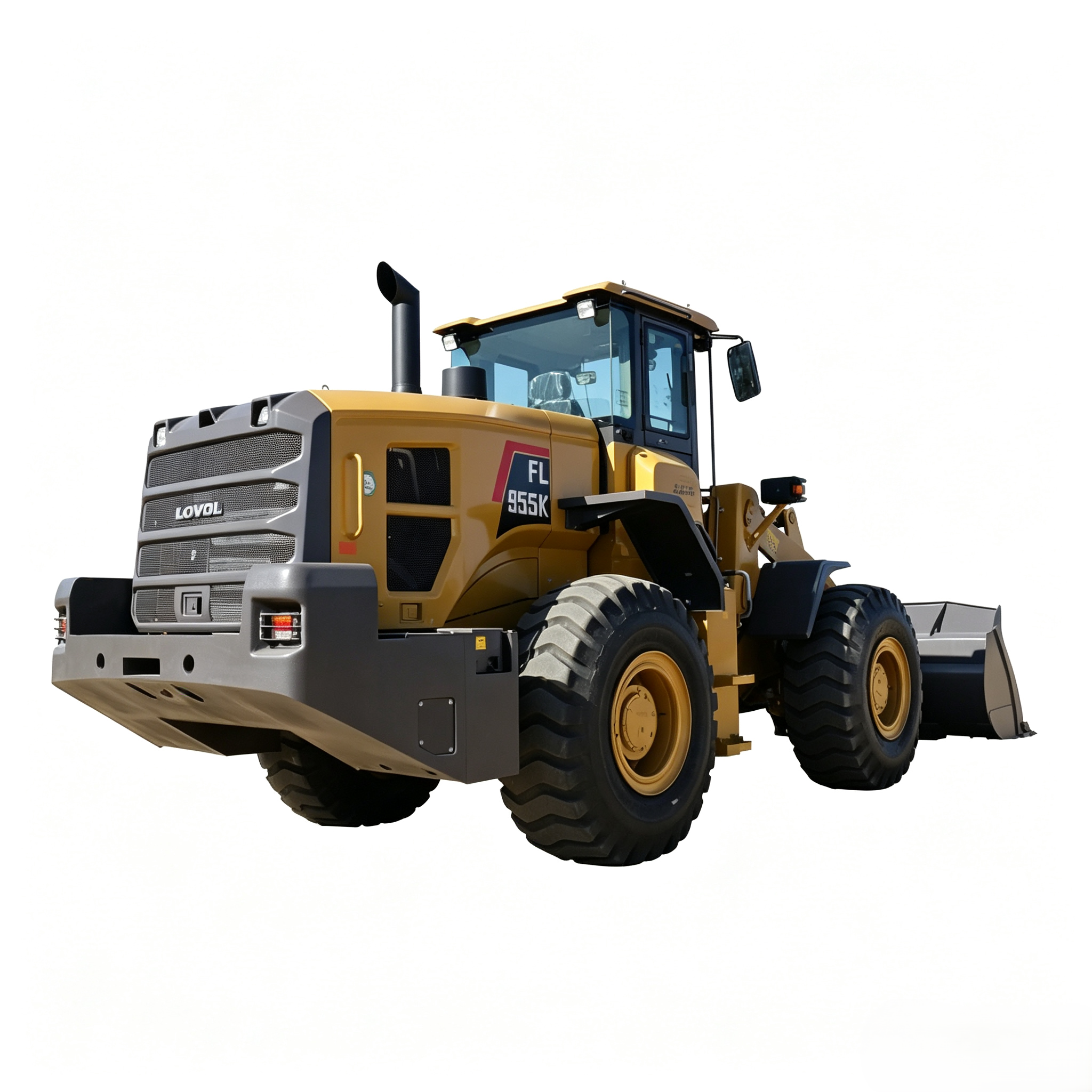

01 Product Introduction
Core Configuration: Weichai WD 10 G Tier Ⅲ Engine + Power‑shift planetary transmission + Coaxial flow amplification steering system, Dual‑pump confluence, Pilot control.

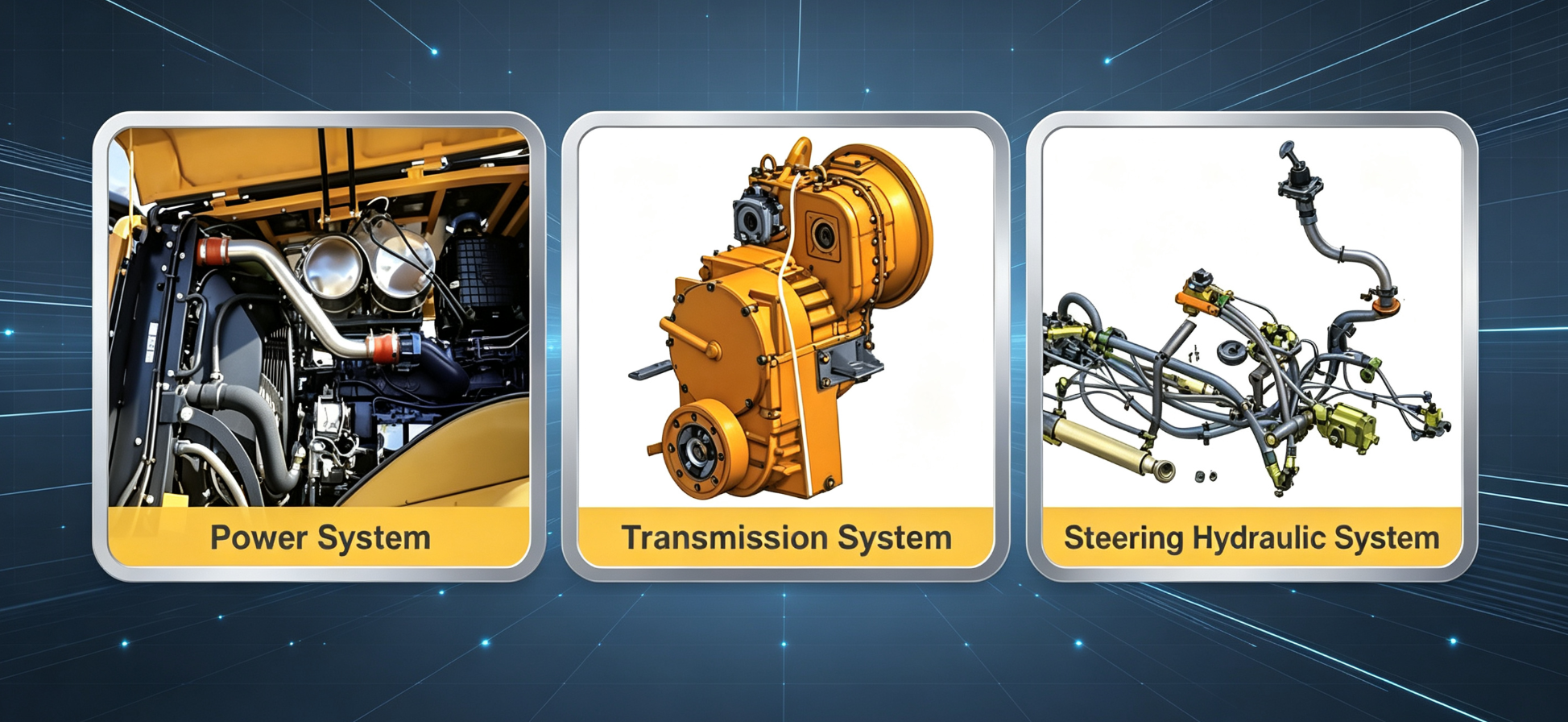

| 系统模块 | 英文原文 | 中文翻译（工程机械专业版） |
|---|
| 动力系统Power System | Weichai National II WD10G engine, with high torque, strong power, and high tractive force. | 潍柴国二 WD10G 发动机，高扭矩、动力强劲、牵引力大。 |
| Customize and develop an exclusive performance curve and a dedicated fuel map, enabling a more perfect coordination between the engine and the transmission system. This can enhance economy and responsiveness, and reduce fuel consumption. | 定制开发专属性能曲线与专用燃油图谱，实现发动机与传动系统更完美的匹配协同，提升经济性与响应性，降低油耗。 |
| 传动系统Transmission System | The power-shift planetary transmission, equipped with an enhanced overrunning clutch, offers more reliable performance. | 动力换挡行星变速箱，标配增强型超越离合器，性能更可靠。 |
| Reinforced Dry-Type Axle with high-load-capacity housing, enlarged gear module, thickened cross shaft, and enhanced reliability. | 加强型干式车桥，高承载桥壳、加大齿轮模数、加粗十字轴，可靠性全面提升。 |
| The front drive shaft features independent support and end-face gear coupling, while the rear drive shaft utilizes wing-type flange connections, offering high load capacity and superior reliability. | 前传动轴采用独立支撑 + 端面齿式联轴器，后传动轴采用翼型法兰连接，承载能力强，可靠性优异。 |
| 转向液压系统Steering Hydraulic System | The coaxial flow-amplification steering system ensures minimal steering force and easy handling. | 同轴流量放大转向系统，转向力小，操作轻便。 |
| Dual-pump convergence ensures reliability and efficiency; pilot control delivers excellent fine maneuverability. | 双泵合流设计，保障可靠性与作业效率；先导操纵，微动操控性能优异。 |
| The 24-degree cone plus "O"-ring sealing technology provides better pipeline sealing. | 24 度锥面 + O 型圈密封技术，管路密封性能更优。 |
![]()

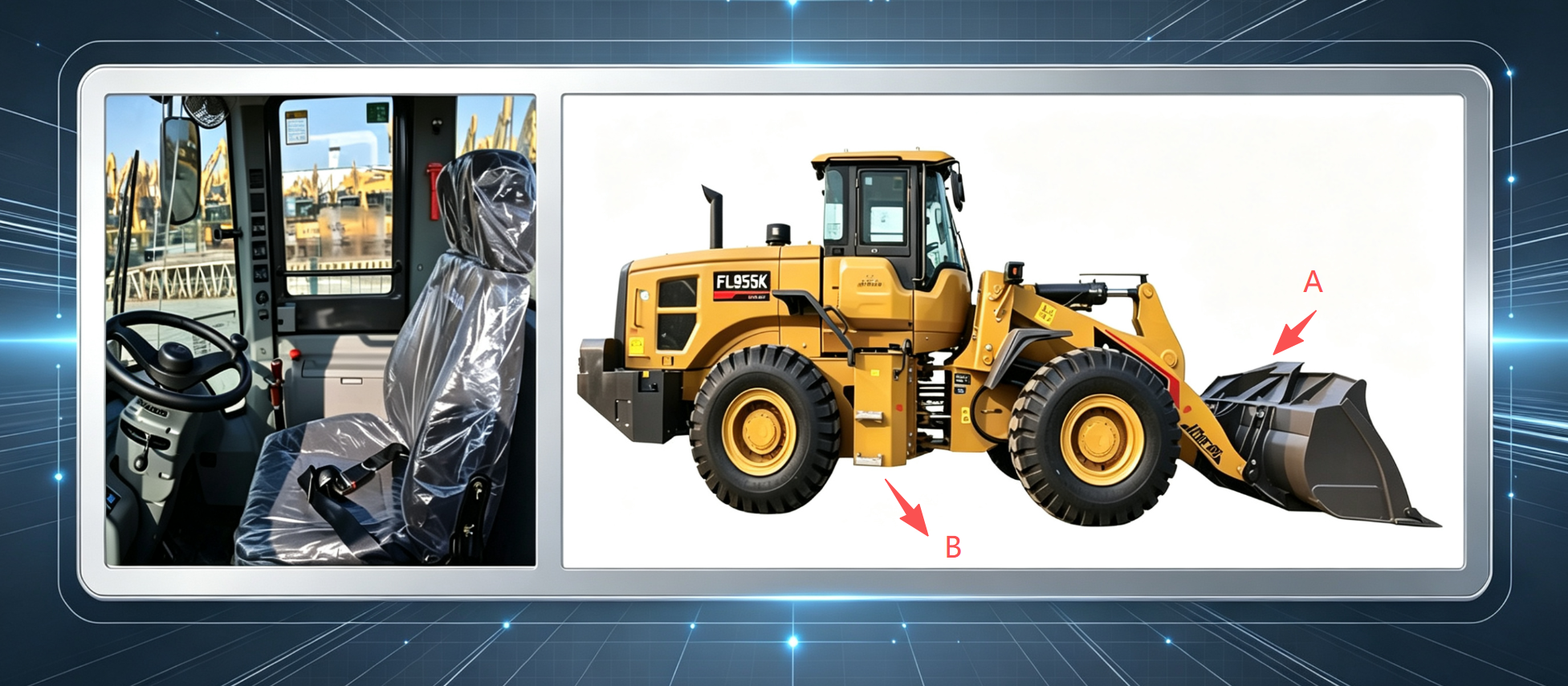

K‑series Cab
Spacious, excellent visibility, superior sealing, and high strength.
First‑Class Working Space
- The front windshield features dual‑curvature, large‑opening laminated glass for enhanced safety;
- The seat features standard air suspension, dual‑slide rail adjustment, and 135° reclining angle for enhanced driving comfort;
Easier Maintenance
- Three‑sided large‑opening flip‑up design for side covers and rear windshield significantly improves machine maintainability.
![]()
Reinforced Machine Body Efficient And Reliable
Working Device
‑The main hinge points of the working device and the swing frame of the rear axle adopt 20GrMnTi honeycomb self‑lubricating bushings for longer service life and extended maintenance intervals.
‑The guide plates fitted on the bucket protect the cab front windshield and each hinge point during dumping operations.
‑Multiple optional attachments are available, such as enlarged buckets, log grapples, hay grapples, forks and others.
Front and Rear Frame
‑The front and rear frames adopt central articulation design and are optimized by finite element analysis, featuring high rigidity, excellent impact resistance and great reliability.
‑Adopts Lovol patented hybrid articulated structure for superior load‑bearing performance.
‑Subjected to CAE structural and strength analysis, and verified by millions‑cycle impact fatigue tests to guarantee high reliability.
‑K‑generation counterweight structure with integrated rear combination lamps achieves better appearance and operational safety.
Product Specification
![]()

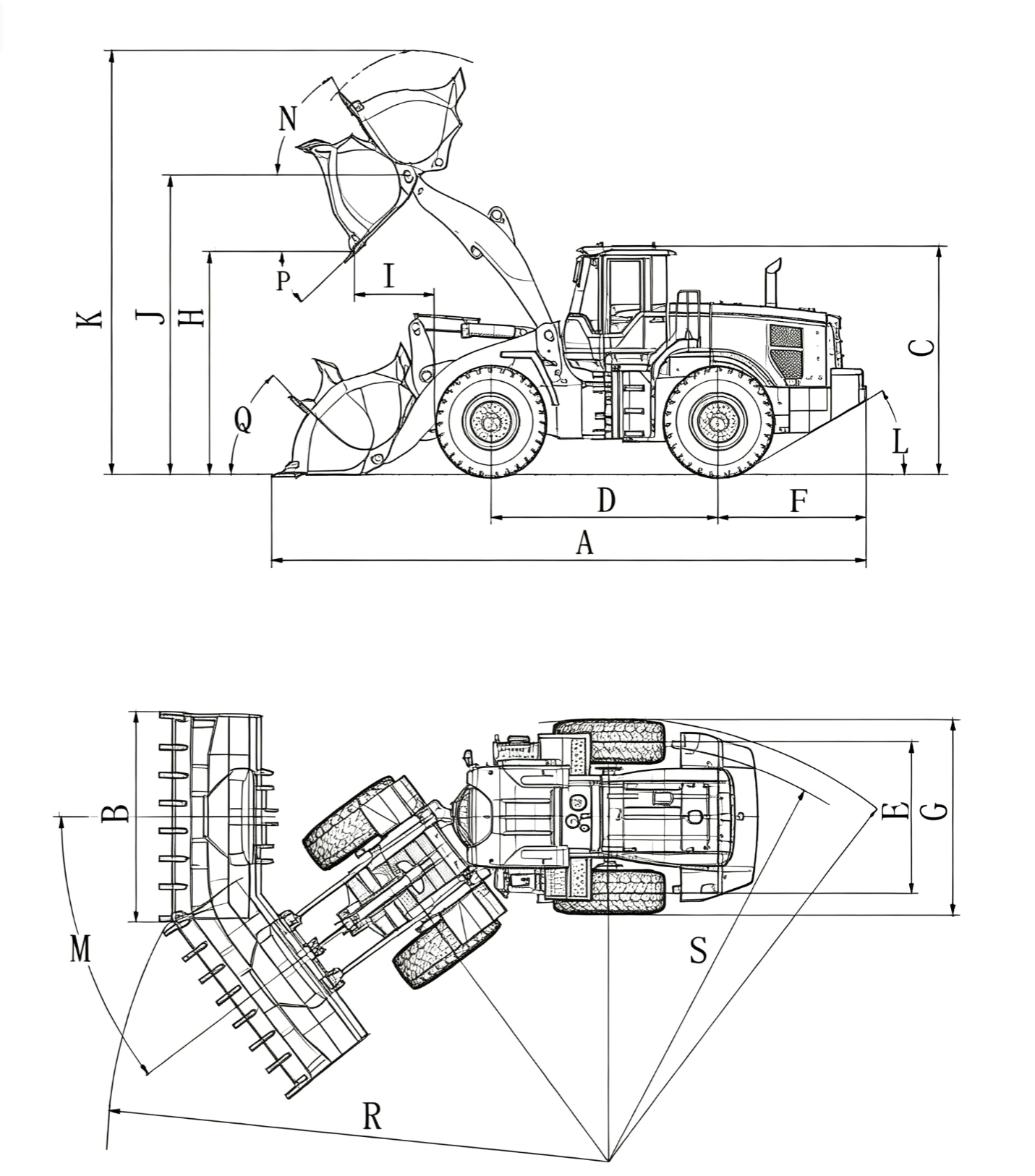

Ⅰ. Overall Machine Dimensions
| 代号 | 英文参数 | 中文翻译 | 数值 |
|---|
| A | Overall Length, mm | 整机总长，毫米 | 8440 |
| B | Overall Width, mm | 整机总宽，毫米 | 2980 |
| C | Overall Height, mm | 整机总高，毫米 | 3420 |
| D | Wheelbase, mm | 轴距，毫米 | 3250 |
| E | Track Width, mm | 轮距，毫米 | 2150 |
| F | Rear Overhang, mm | 后悬，毫米 | 2300 |
| G | Tire Width, mm | 轮胎宽度，毫米 | 595 |
| H | Dumping Height, mm | 卸载高度，毫米 | 3140 |
| I | Dumping Distance, mm | 卸载距离，毫米 | 1090 |
| K | Maximum Lifting Height, mm | 最大起升高度，毫米 | 5640 |
| L | Angle of Departure, ° | 离去角，° | 30 |
| M | Steering Angle, ° | 转向角，° | 37 |
| P | Angle of Discharge, ° | 卸载角，° | 44 |
| Q | Transport Angle, ° | 运输角，° | 49 |
| R | Turning Radius (Outer Side of Bucket), mm | 转弯半径（铲斗外侧），毫米 | 6980 |
| - | Turning Radius (Center of Tire), mm | 转弯半径（轮胎中心），毫米 | 5920 |
| - | Maximum Hitch Height, mm | 最大牵引高度，毫米 | 4190 |
Ⅱ. Overall Machine Performance Parameters
| 模块 | 英文参数 | 中文翻译 | 数值 / 规格 |
|---|
| 整机参数 | Rated Load Capacity, kg | 额定载荷，千克 | 5200 |
| Curb Weight, kg | 整备质量，千克 | 17390 |
| Max. Traction Force, kN | 最大牵引力，千牛 | 160 |
| Max. Digging Force, kN | 最大掘起力，千牛 | 160 |
| Standard Bucket Capacity, m³ | 标准铲斗容量，立方米 | 2.8 |
| 发动机 | Model | 型号 | WEICHAI WD10G220E23 |
| Emission Class | 排放等级 | Tier II（国二） |
| Engine Suction | 进气方式 | Supercharge（增压） |
| Number of Cylinder-Bore | 缸数 - 缸径 | 6-126×130 |
| Displacement, L | 排量，升 | 9.726 |
| Rated Power, kW | 额定功率，千瓦 | 162 |
| Rated Speed, rpm | 额定转速，转 / 分钟 | 2000 |
| Max. Torque, N·m | 最大扭矩，牛・米 | 980 |
| 变速箱 | Type of Transmission | 变速箱类型 | Mechanical-shift planetary（机械换挡行星式） |
| Type of Torque Converter | 变矩器类型 | Single-stage, two-phase, four-element（单级、双相、四元件） |
| Torque Multiplication Factor | 变矩系数 | 4.0 |
| Number of Gears | 挡位数量 | 2 forward/1 reverse（2 前进 / 1 倒退） |
| Max. Speed, km/h | 最高车速，千米 / 小时 | 42.0 |
| 车桥 | Type | 类型 | Dry（干式） |
| Front and Rear Axle Reduction Type | 前后桥减速类型 | Single-stage reduction with spiral bevel gears / Wheel-side planetary gear reduction with straight cylindrical gears（一级螺旋锥齿轮减速 / 轮边直齿圆柱齿轮行星减速） |
| 空调 | Working Medium (warm/cold) | 工作介质（暖 / 冷） | Coolant/R134a |
| Cooling Capacity, kW | 制冷量，千瓦 | 4.5 |
| 轮胎 | Tire Specifications | 轮胎规格 | 23.5-25 |
| Tire Rating | 轮胎层级 | 16 |
| Front Tire Pressure, Mpa | 前轮胎压，兆帕 | 0.36-0.38 |
| Rear Tire Pressure, Mpa | 后轮胎压，兆帕 | 0.33-0.35 |
| 工作液压 | Control Mode | 控制方式 | Pilot control（先导操纵） |
| Working Hydraulic System Type | 工作液压系统类型 | Dual-pump flow combination（双泵合流） |
| System Operating Pressure, Mpa | 系统工作压力，兆帕 | 18 |
| Working Pump Model | 工作泵型号 | GP2100/02010-XFL02 / CBGq2100/0010-YF |
| Displacement, ml/r | 排量，毫升 / 转 | 100 |
| Multi-way valve model | 多路阀型号 | YGDF32 |
| Pilot Working Pressure, Mpa | 先导工作压力，兆帕 | 3.5 |
| Boom Lifting Time, s | 动臂举升时间，秒 | 5.7 |
| Total Time for Three Operations, s | 三项和时间，秒 | 10.6 |
| 制动系统 | Service Braking | 行车制动 | Air-over-oil caliper disc type（气顶油钳盘式） |
| Parking Braking | 驻车制动 | Air braking（气压制动） |
| Brake Pressure, Mpa | 制动压力，兆帕 | 0.784 |
| 车身 | Overall Dimensions of The Cab (Length × Width × Height), mm | 驾驶室外形尺寸（长 × 宽 × 高），毫米 | 1810×2090×1970 |
| 油箱 | Fuel Tank (geometric volume), L | 燃油箱（几何容积），升 | 280 |
| Hydraulic Oil Tank (level gauge midline), L | 液压油箱（油尺中线），升 | 135 |
| Engine Oil, L | 发动机机油，升 | 22 |
| Transmission Oil, L | 变速箱油，升 | 36 |
| Front and Rear Axle, L | 前后桥油，升 | 32 (前进)/26 (倒退) |
| Brake Pump, L | 制动泵油，升 | 4 |
| Antifreeze, L | 防冻液，升 | 51 |
