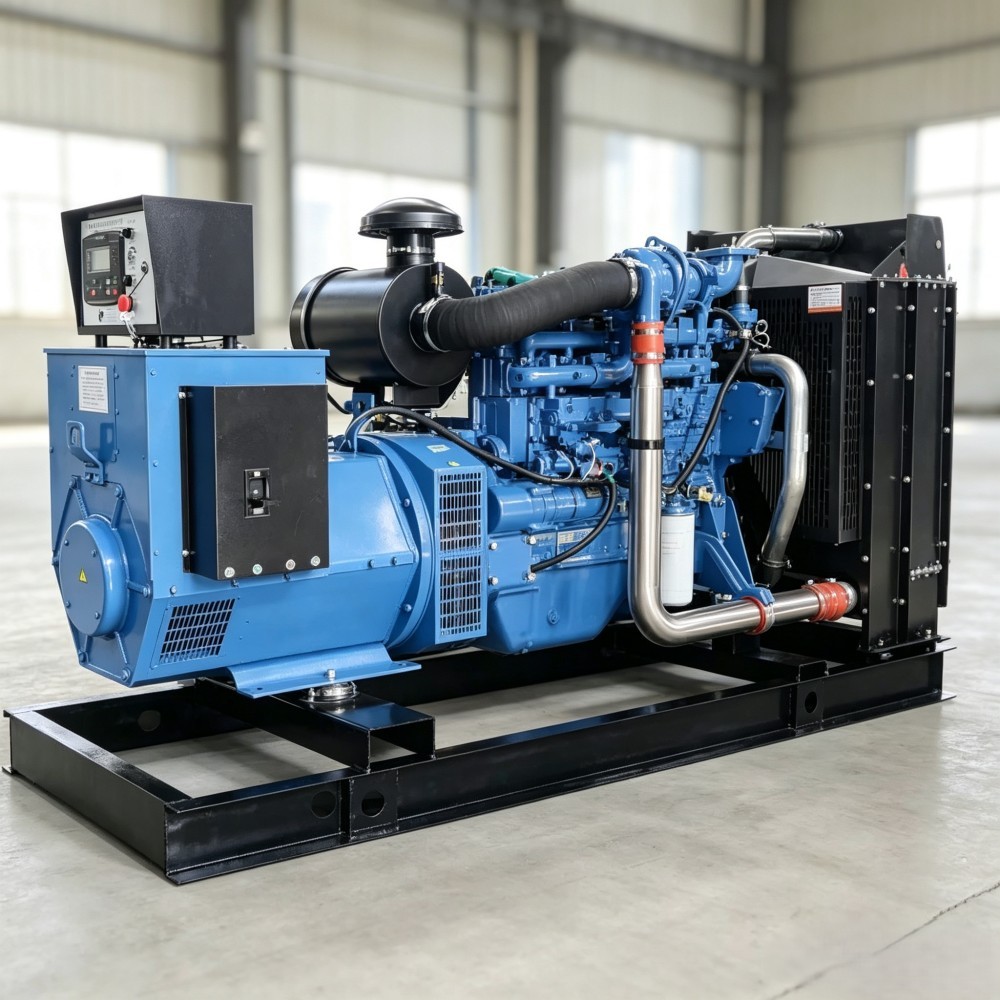

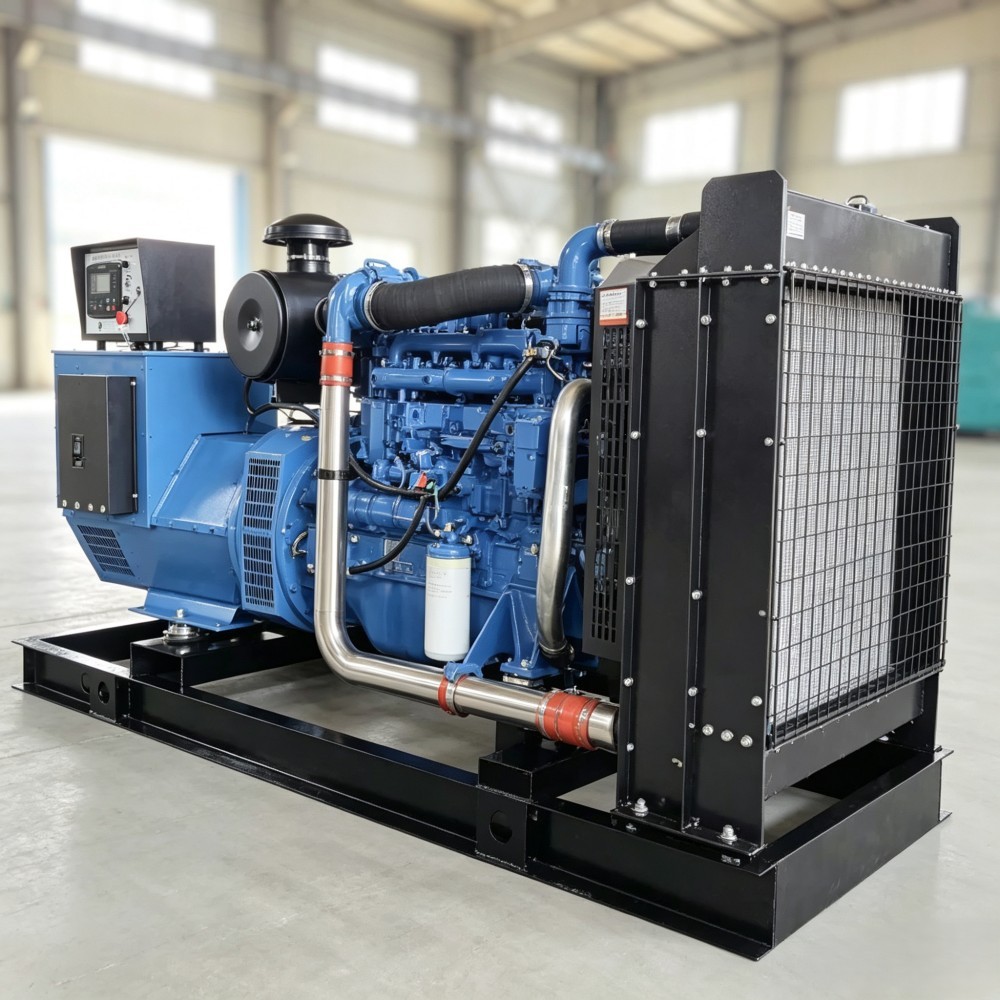

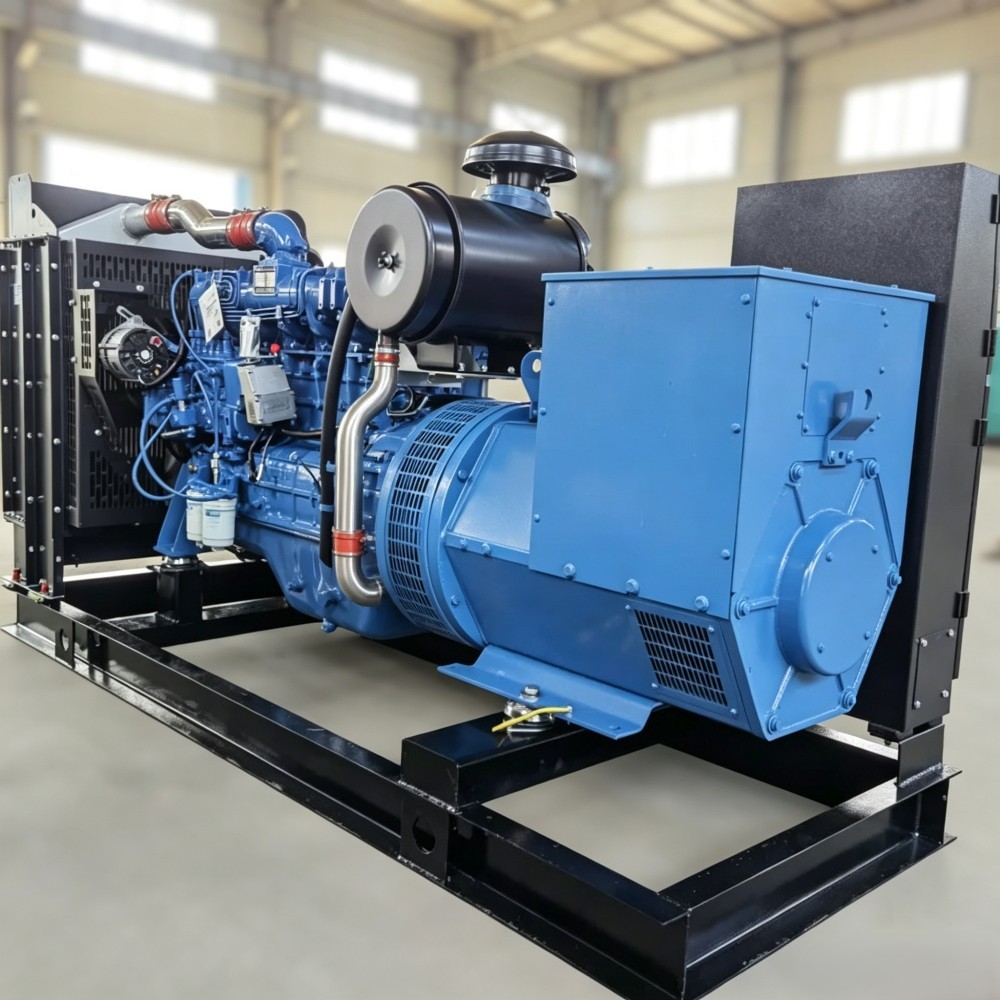

YC6A245L-D21
Prime power: 165 kW @ 1500 r/min
Standby power:181 kW @ 1500 r/min
For clients in the places where emission regulations have not been implemented yet.
Introduction
YC6A series engine through long-term market trial, is a mature product with excellent performance and high reliability; the market quantity of it is more than one million. Such model YC6A245L-D21 is developed for the characteristics of generator unit, which is characterized by high cost performance, easy use and maintenance。
Product Features
1.The engine body is made of high strength alloy cast iron, making the entire engine highly reliable even after many years of service.
2.Stable operation: Electronic speed governing is adopted, ensuring small rotation speed fluctuation, stable operation, low steady speed droop and quick transient response.
3.Easy maintenance: The universal rate of the parts and the parts for the products in the 6A production batch is over 90%.
4.G3 performance requirements for generator set are met.
Product Service
- Service: Yuchai has built the largest service network in the industry with the minimum service radius, the most extensive “three guarantees” and the shortest response time. 49 global offices are set up, including 14 overseas offices in Europe, Africa and South America etc. Besides, 108 overseas service agents, more than 3,000 service stations and 5,000 sales networks of fittings are established, providing the users with satisfying and considerate services.
| Engine speed | Application | Standard generator unit output | | Engine power | | | |
|---|
| r/min | | kVA | kW | Total power | | Net power | |
| | | | kW | Ps | kW | Ps |
| 1500 | Prime | 187.5 | 150 | 165 | 224 | 157 | 214 |
| 1500 | Standby | 200 | 160 | 181 | 246 | 173 | 235 |
Notes:
1. Prime Power: which corresponds to the basic power (PRP) described in ISO 8528. Implement the maintenance according to the Yuchai's
requirement, maximum power of variable load continuous output unlimited time. The average output power shall not exceed 70% of the
prime power in every 24 hours of operation.
Standby Power: In correspondence with the emergency standby power (ESP) stated in ISO 8528. Implement the maintenance according to
the Yuchai's requirement, maximum power at a variable load in the event of a main power network failure up to a maximum of 200 hours
per year. The average output power shall not exceed 70% of the standby power in every 24 hours of operation.
2. The engine power data stated in the table is the measured performance under the condition stated in ISO 8528-1 and ISO 3046.
3. The power output of the generator unit is calculated according to the efficiency of the AC generator. Thus, it is for reference only.
4. The kVA and kW values are converted as per standard power factor 0.8.
5. The information mentioned above is the latest one, however, the relevant information may be altered after publication.
| Engine load | 1500 r/min | |
|---|
| g/(kW·h) | L/h |
| Standby power | 197.5 | 42.6 |
| Prime power | 195.7 | 38.4 |
| 75% prime power | 195.6 | 28.8 |
| 50% prime power | 201.2 | 18.8 |
Remarks: the diesel oil density is 0.840 g/cm³; Data Tolerance: ±5%
| Technical Data | |
|---|
| Type | Vertical, in‑line, water‑cooled, four‑stroke |
| Induction system | Turbocharged & Intercooled |
| Type of combustion chamber | Direct‑injection reentrant ω combustion chamber |
| Cylinder quantity‑Bore × stroke | 6‑108×132mm |
| Number of valve per cylinder | 2 |
| Displacement | 7.26L |
| Compression ratio | 17.5:1 |
| Cylinder type | Wet‑type cylinder sleeve |
| Working sequence | 1‑5‑3‑6‑2‑4 |
| Fuel supply system | Mechanical pump + electronic governor |
| Lubrication mode | Combination of pressure and splashing |
| Starting mode | Electronic |
| Engine oil capacity | 22L (dry‑type engine) |
| Engine oil and fuel consumption ratio | ≤0.1% |
| Rotation | Anticlockwise (facing the power delivery end) |
| Minimum no‑load speed | (650～700)r/min |
| Speed‑regulation grade | ISO 8528 G3 |
| Noise Lp | ≤98dB(A) |
| Total dry weight‑Engine | 725kg |
| Total dry weight‑Radiator | 100kg |
Remarks: The final weight and sizes of the engine varies according to the specific arrangement.
Engine Arrangement
- ➤ Air Intake System Air filter
- ➤ Cooling system Radiator (optional)
- ➤ Electrical device 24V/12V electrical system Inlet preheater (optional)
- ➤ Fuel system Mechanical pump + electronic governor Fuel Filter
- ➤ Lubrication system Engine oil filter
- ➤ Flywheel and flywheel housing SAE 11.5'' flywheel SAE 2# flywheel housing
- ➤ Documents Operation Instruction Installation Guide Parts catalog
- Fuel grade: Summer: 0# and 5# ordinary diesel oil of GB 19147‑2016 premium grade or first grade. Winter: 0#, ‑10#, ‑20#, and ‑35# ordinary diesel oil of GB 19147‑2016 premium grade or first grade.
- Oil brand: 15W‑40 in summer; 10W‑30 or other environmentally suitable diesel engine oils with the quality grade not lower than Grade CH‑4 as provided in GB 11122‑2006 in winter.
